The Impact of Water Hardness on Textile Dyeing And Printing

Introduction: What does "soft" and "hard" water mean in the textile dyeing and printing industry? What criteria are used to distinguish between them? What impact does water hardness have on dyeing?

1. How to Determine if Water is "Soft" or "Hard"

This is mainly determined by the content of metal ions such as calcium and magnesium in the water (i.e., water hardness).

Water hardness significantly affects dyeing quality; hard water easily leads to uneven dyeing and dull colors in fabrics.

2. Standards for Distinguishing Between Hard and Soft Water

In the textile dyeing and printing industry, hardness units are usually expressed in ppm or mg/L (both representing the milligrams of calcium carbonate contained per liter of water), and the numerical values are equivalent.

According to various industry sources, the common classifications of water quality are as follows:

Soft Water

Total hardness range: 0 - 50 ppm

Explanation: Suitable for most high-standard dyeing processes. Some sources define the 0-30 ppm range as soft water.

Medium Hard Water

Total hardness range: 50 - 100 ppm

Explanation: Can be used for some pre-treatment processes, but may pose risks when used for dyeing.

Hard Water

Total hardness range: Above 100 ppm

Explanation: Extremely detrimental to the dyeing process, easily causing various defects, and usually requires softening treatment.

Explanation: Extremely detrimental to the dyeing process, easily causing various defects, and usually requires softening treatment.

What are the differences between different types of hard water?

Temporary hardness: Primarily caused by calcium and magnesium bicarbonates, which can be removed by boiling.

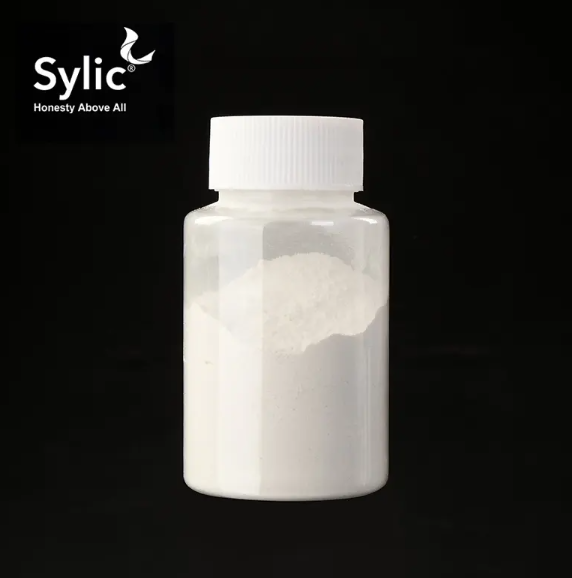

Permanent hardness: Caused by calcium and magnesium sulfates or chlorides, which cannot be removed by boiling and require chemical treatment.Dispersing Sequestering Sylic P1500A is a multi-functional product widely used for water softening and preventing sediment formation during dyeing and finishing processes. It exhibits excellent chelating and sequestering capabilities towards heavy metal ions such as calcium, magnesium, and iron.

Negative Impacts of Hard Water on Various Dyeing and Finishing Processes

The metal ions such as calcium, magnesium, and iron in hard water react chemically with dyes and auxiliaries, leading to a series of quality problems.

1. Impact on Pre-treatment Processes (Scouring and Bleaching)

 Scouring process: Calcium and magnesium ions in hard water react with caustic soda to form insoluble precipitates. This not only wastes auxiliaries, but the precipitates adhering to the fabric form difficult-to-remove calcium spots, affecting the uniformity of subsequent dyeing.

Bleaching process: Excessive iron and manganese ions in the water are strong catalysts, which can violently catalyze the decomposition of hydrogen peroxide, potentially leading to localized fabric damage or even holes. At the same time, manganese ions are also a major cause of yellowing in bleached fabrics.

2. Direct Impact on Dyeing Processes

Color and Leveling: Calcium and magnesium ions can cause dyes to precipitate or aggregate, resulting in reduced color brightness and darker shades. During the dyeing process, this easily leads to uneven dyeing, color variations, and color spots.

Sensitivity of Different Dyes: Different dyes have different tolerances to hard water.

Reactive dyes: The overall impact is relatively small, but hard water may slightly darken some colors (such as red).

Vat dyes: Very sensitive to hardness, especially for yarn dyeing, which requires the use of soft water (hardness < 30 mg/L), otherwise it will seriously affect the dyeing effect.

Disperse dyes/Acid dyes: Disperse yellow, and some disperse turquoise and bright blue colors are prone to becoming gray and dull in hard water; the impact of hard water is particularly prominent when dyeing nylon.

3. Hazards to Other Processes and Equipment

Soaping and Finishing: Hard water causes soap to form insoluble calcium and magnesium soaps, staining the fabric and affecting its feel and luster. During softening treatment, excessively hard water can also cause precipitation, leading to problems such as soft spots on the fabric surface.

Production Equipment: Hard water easily causes scaling on the inner walls of equipment such as boilers and heat exchangers, reducing thermal efficiency and increasing energy consumption.

Key Control Indicators and Recommendations for Water Used in Textile Dyeing and Finishing

Besides total hardness, other water quality indicators are equally crucial. The following are reference requirements for water used in dyeing and finishing:

Total Hardness

Recommended range: < 50 ppm

Note: Softer water (<18 ppm) is recommended for preparing dye solutions and soaping baths.

PH Value

Recommended range: 6.5 - 7.5 (near neutral)

Note: High pH (alkaline) can affect dyeing uniformity and may lead to dye hydrolysis.

Iron Ions (Fe³⁺)

Recommended range: < 0.1 ppm

Note: Exceeding this limit can cause discoloration and stains, and is a key monitoring indicator.

Manganese Ions (Mn²⁺)

Recommended range: < 0.1 ppm

Note: This is a major factor causing yellowing of bleached fabrics.

Turbidity/Color

Recommended requirements: Colorless, transparent, no suspended solids

Note: Suspended solids can affect fabric whiteness and cause dye stains.

In actual production, due to the large amount of water used, water quality is usually graded according to the importance of the process. For example, soft water (<18 ppm) is required for preparing dye solutions and soaping baths, while the water used for pretreatment and scouring can be relaxed to <120 ppm, and the standard for washing water can be further relaxed.

Common Water Softening Methods

Chemical Softening Method:  Adding chelating agents such as sodium hexametaphosphate and EDTA (ethylenediaminetetraacetic acid) to hard water to bind with calcium and magnesium ions, preventing precipitation. This is the most common and flexible method.

Ion Exchange Resin Method: Passing raw water through equipment containing ion exchange resin to remove calcium and magnesium ions, producing high-quality soft water. This method is effective, but the equipment investment and operating and maintenance costs are higher.

In summary, controlling water hardness is crucial for ensuring the quality of textile dyeing products. Regular monitoring of water quality and implementing graded water usage or adding water softeners according to different process requirements are necessary to effectively avoid various quality problems caused by hard water.
